Project Overview & Collaboration
This innovative residential geothermal system is based on the original single-loop concept and schematic invented by Ralph Ross of Ross Refrigeration.
Credits & Collaboration:
• Original Concept, Schematic & Core Invention: Ralph Ross (Ross Refrigeration)
• Product Development & Collaborative Invention: Rob Charest — Inventor assisting with refinement, productization, and commercialization
• Enhanced Design (Closed-Loop Piggyback + Solar Integration) & Project Lead: Andrew Ross
The system harnesses Springhill’s abundant flooded mine water (\~18°C stable temperature) for efficient, year-round heating and cooling without the -25°C limitations of air-source heat pumps. It features direct-DC power, micro-hydro self-generation, and zoned comfort via four 4-way ceiling cassettes.
Reference: Springhill mine water geothermal assessment — glargod.github.io/fishing/geospring.html
How the System Works
Open-Loop Baseline (Ralph Ross Original Invention)

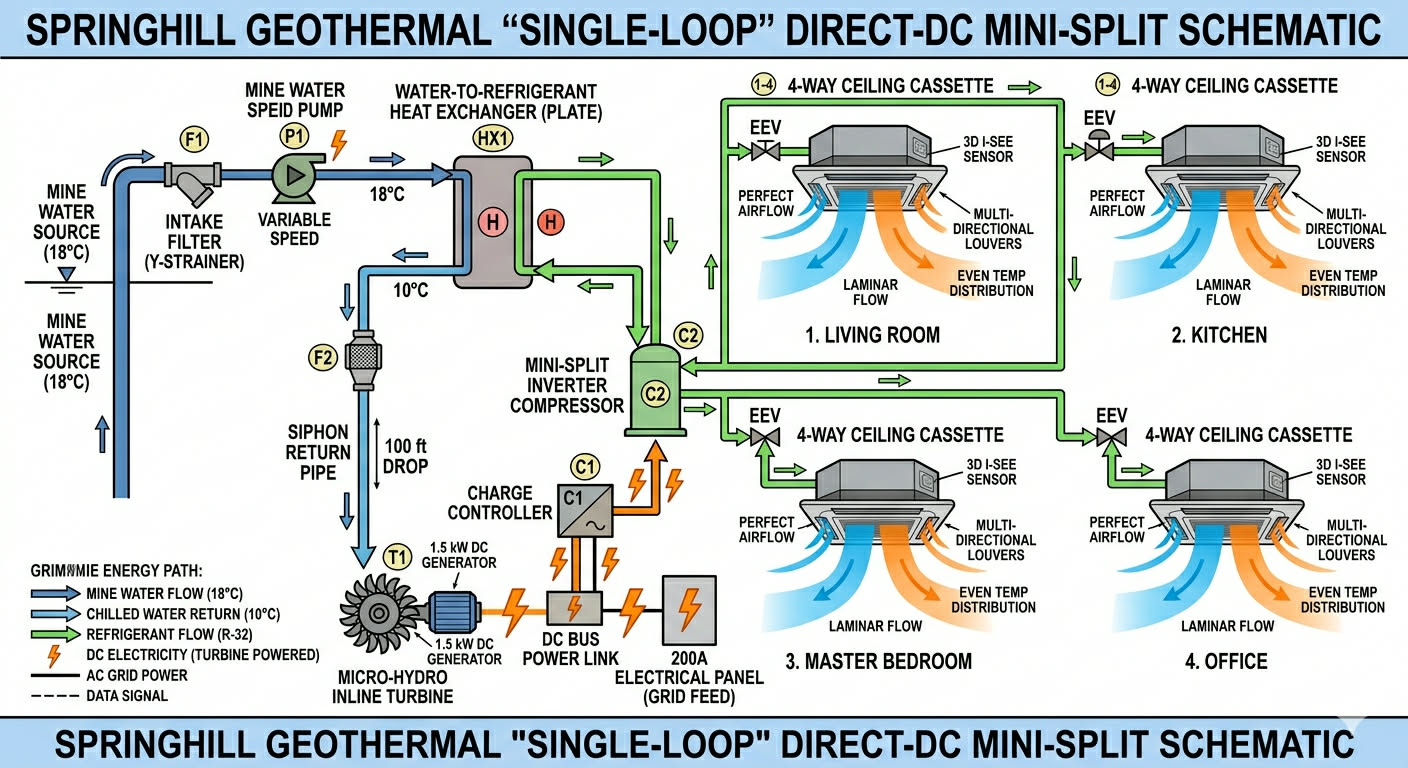

Mine water is pumped through the plate heat exchanger (HX1) to transfer heat to the R-32 refrigerant loop. The inverter compressor powers the system, while chilled return water drops 100 ft to drive the micro-hydro turbine for on-site DC electricity. Refrigerant serves the four independent ceiling cassettes.
Closed-Loop Configuration (Andrew Ross Enhancement)
A sealed glycol loop circulates through submerged coils in the mine, exchanging heat at HX1 without mine water entering home equipment. This improves durability and simplifies permitting while preserving the core design.
Solar Integration (Collaborative Enhancement)
Solar PV connects directly to the DC bus, supplementing micro-hydro for greater energy independence and resilience.
Recommended Airflow: \~400 CFM per ton (350–450 CFM/ton range) for optimal comfort and dehumidification with the variable-speed ceiling cassette fans.
Full Diagrams of the Unit Design

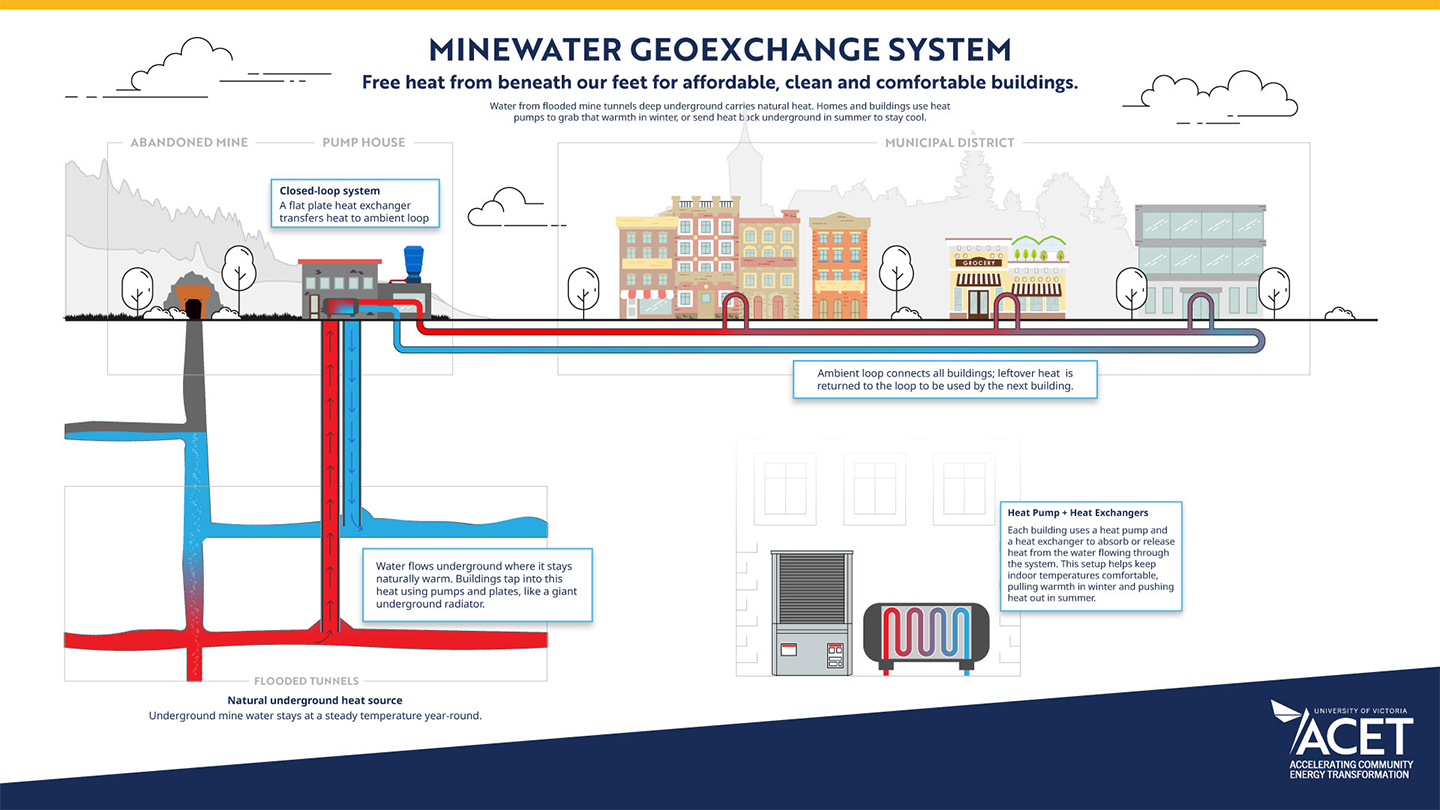

Mine Water Geoexchange System (Open & Closed-Loop)

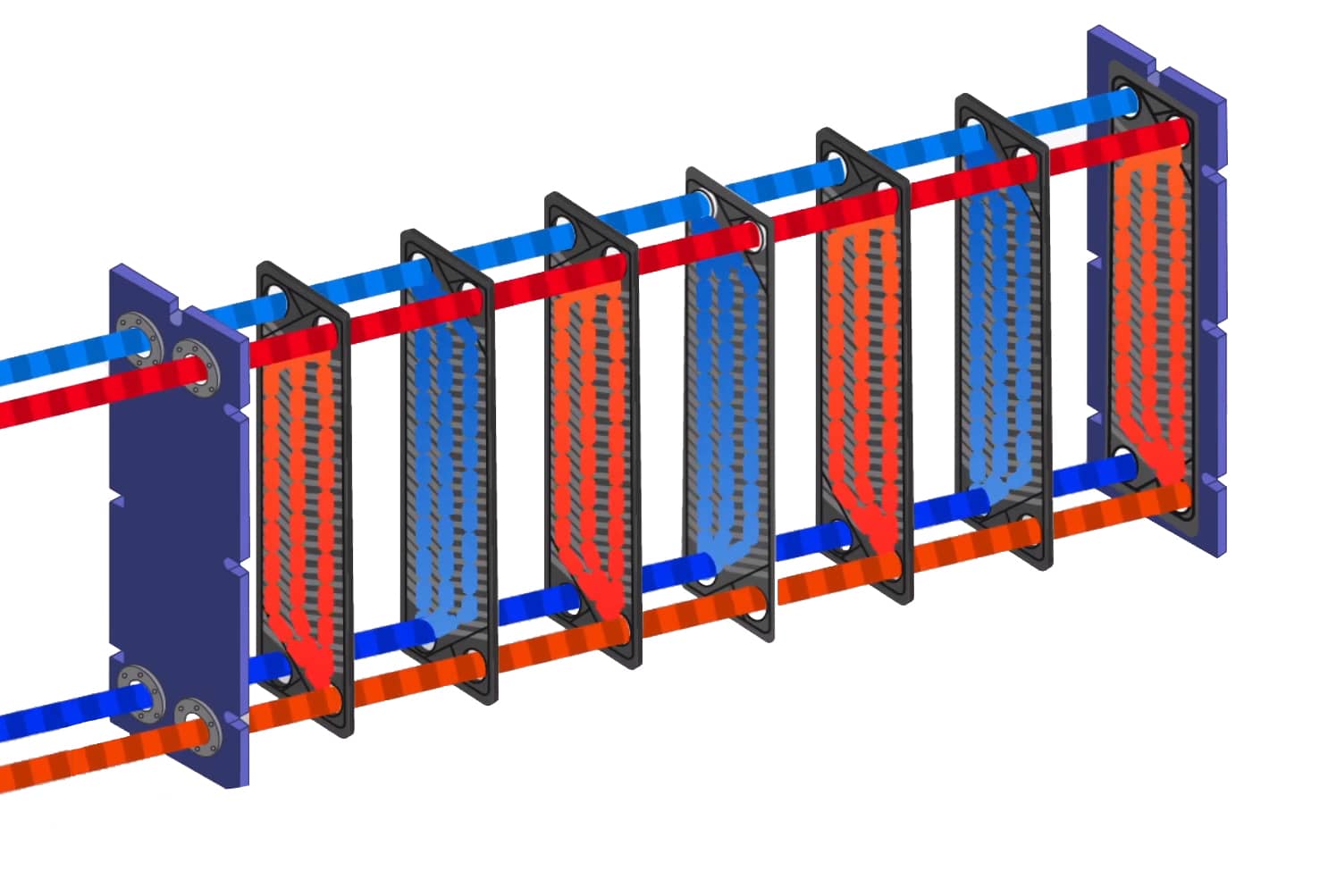

Water-to-Refrigerant Plate Heat Exchanger (Core of the Design)

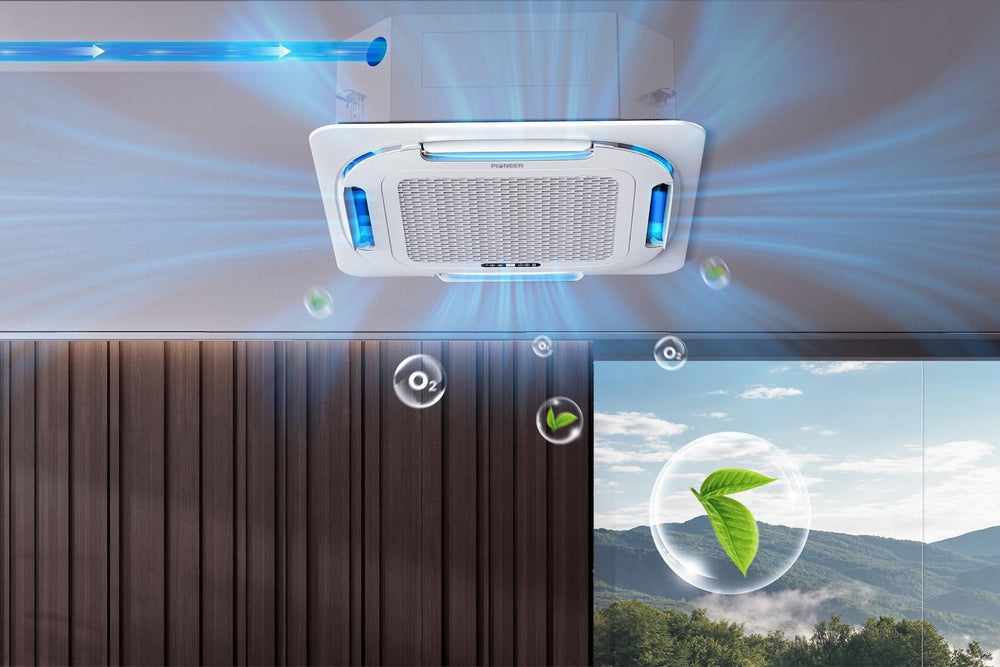

4-Way Ceiling Cassette in Operation (Cooling Mode)

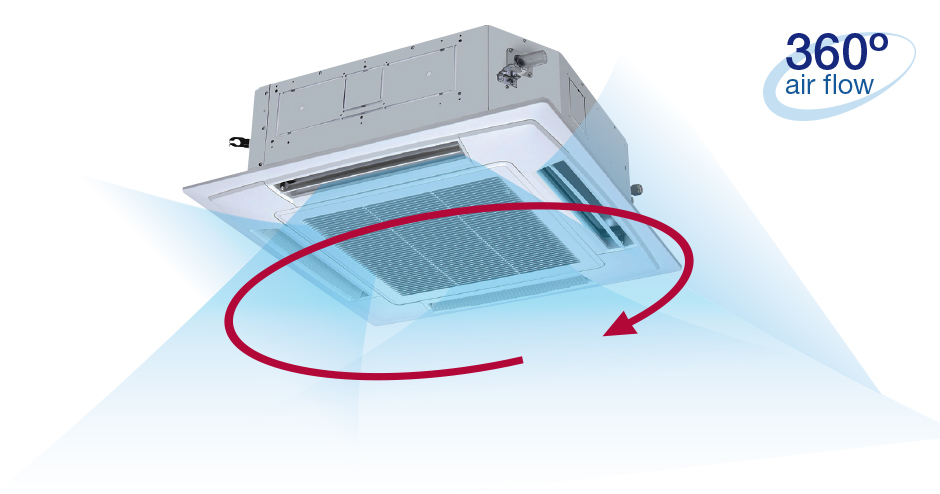

Additional Ceiling Cassette Airflow (360° Distribution)
Heat Pump Unit in Operation (Mechanical Room Installation)
Overall Mine Water Geothermal Concept
Feasibility in Springhill, Nova Scotia
Springhill pioneered mine-water geothermal in the 1980s and remains a world leader. The flooded mines provide a vast, stable thermal reservoir at \~18–20°C (deeper sections potentially \~26°C). This system scales that proven community technology to individual homes with closed-loop durability, micro-hydro self-powering, and solar integration.
It is technically strong for Springhill properties, with direct access to the resource offering significant advantages. The design delivers quiet, zoned comfort and year-round efficiency without cold-weather performance loss.
Next Steps
- Site-specific assessment: water quality, flow/head, and mine access evaluation in Springhill.
- Detailed engineering and heat-load calculation targeting \~400 CFM/ton airflow.
- Continued collaboration with Rob Charest on product development and invention aspects.
- Regulatory consultation with Nova Scotia Department of Energy and Mines, leveraging Springhill’s established geothermal heritage.
We welcome geothermal engineers, contractors, and manufacturing partners to help implement and commercialize this system.
